Product overview

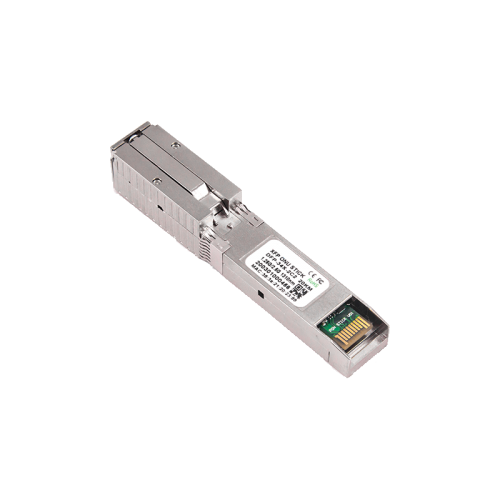

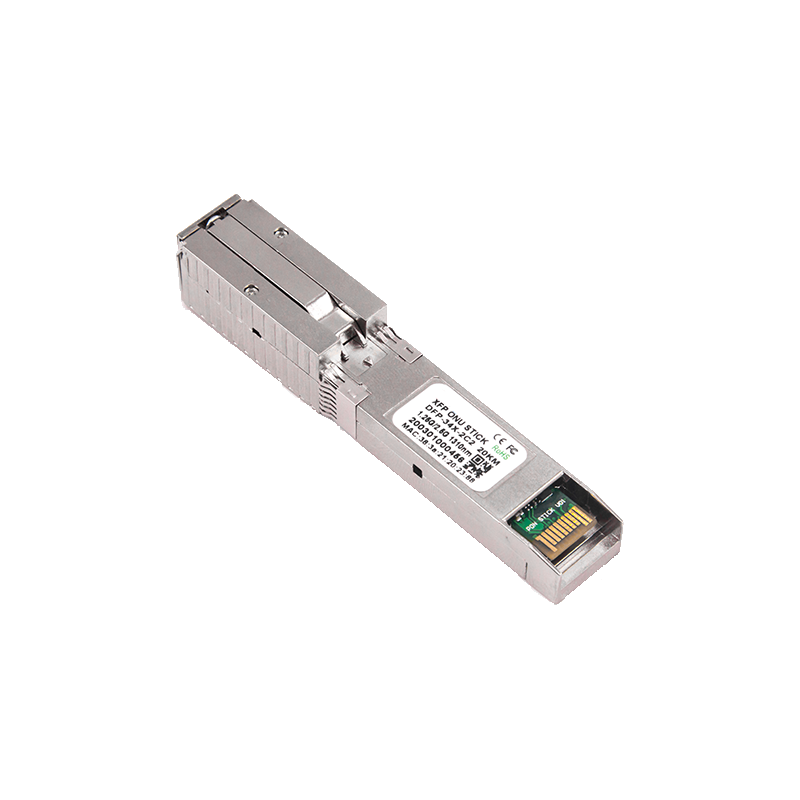

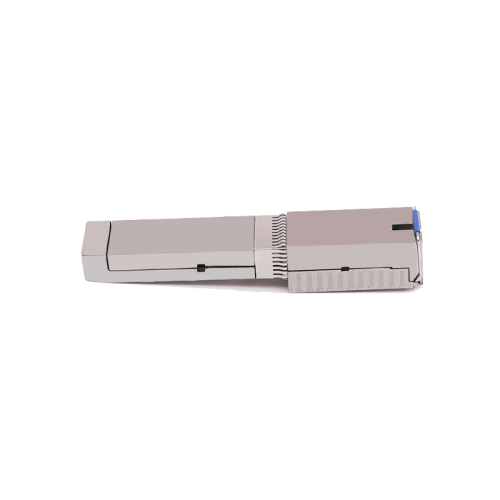

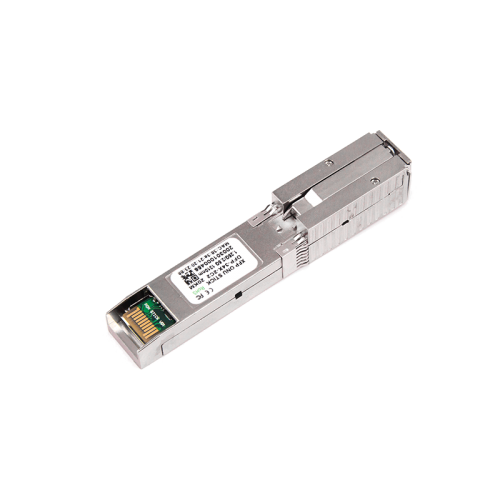

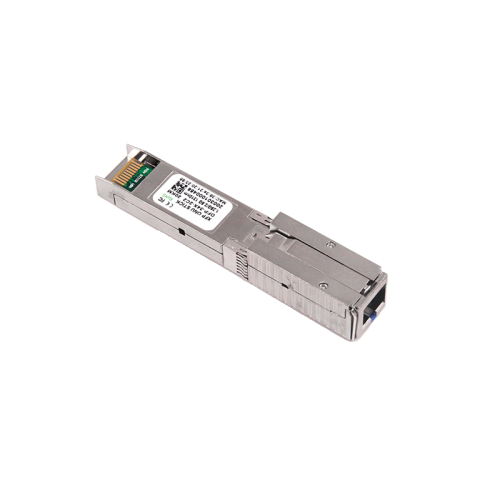

XPON STICK is a mouth ONU SFP, compact, plug and play, have good heat dissipation and shielding effect, can be hot plug to the switch, cameras and other equipment SFP slot, the machine can be as ONU MDU even, so that the whole equipment can be directly linked or EPON GPON optical network, can replace the outer ONU, improve the system integration.
XPON Stick adaptively supports GPON with asymmetric upstream and downstream rates and EPON with symmetrical upstream and downstream rates. When used in coordination with OLT local devices, XPON Stick provides users with Ethernet services with good QoS guarantee, flexible bandwidth allocation and IP integrated services.
XPON Stick is fully compatible with SFP's multi-source protocol MSA and the SFF8472 standard (see SFP MSA for more information). It fully meets the G.984 standard defined by ITU-T, and meets the technical requirements of GPON and EPON equipment of many domestic operators.
Product features:
With single fiber bidirectional data link GPON and EPON MAC capabilities

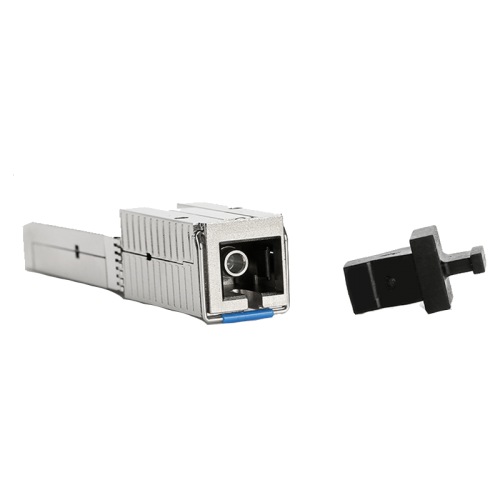

SC/PC fiber optic interface, plug and play without configuration
The transmitter is in 1310nm burst mode and the receiver is in 1490nm APD TIA continuous mode
Digital Diagnostic Function (DDM) is compatible with SFF-8472
Compatible with the SFP MSA
Low electromagnetic interference and excellent ESD protection
Application scenarios:
Product Specification:
Product | Encapsulation | Model | Rate | Wavelength | Laser | Interface | Mode | DDM |
---|---|---|---|---|---|---|---|---|
XPON STICK ONU |
SFP | GSXP01 |
GPON:1.25Gbps/2.5Gbps EPON:1.25Gbps/1.25Gbps |
Tx1310/RX1490 | DFB/APD | SC | GPON/EPON | YES |
GPON STICK ONU |
SFP | GSGP01 | 1.25Gbps/2.5Gbps | Tx1310/RX1490 | DFB/APD | SC | GPON | YES |
EPON STICK ONU |
SFP | GSEP01 | 1.25Gbps/1.5Gbps | Tx1310/RX1490 | DFB/APD | SC | EPON | YES |
