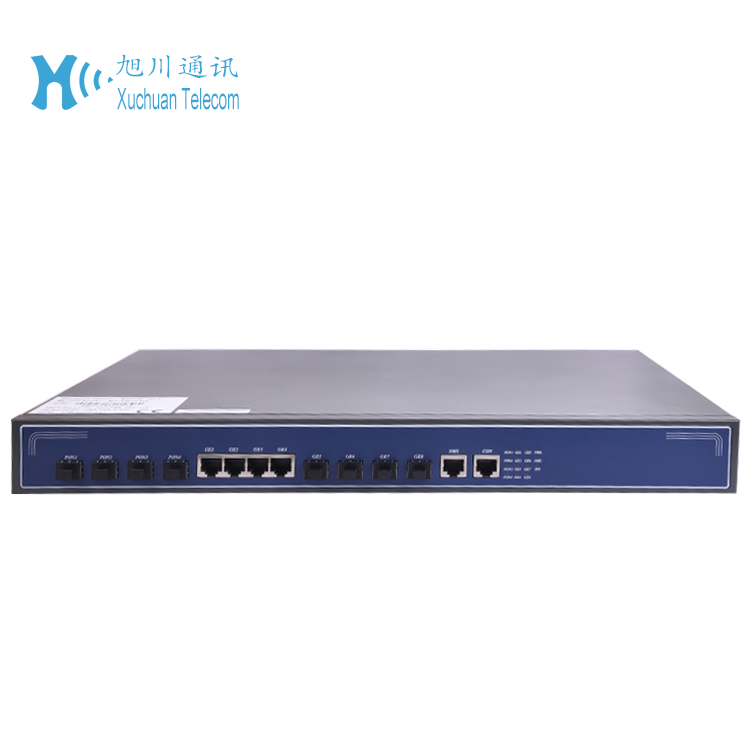

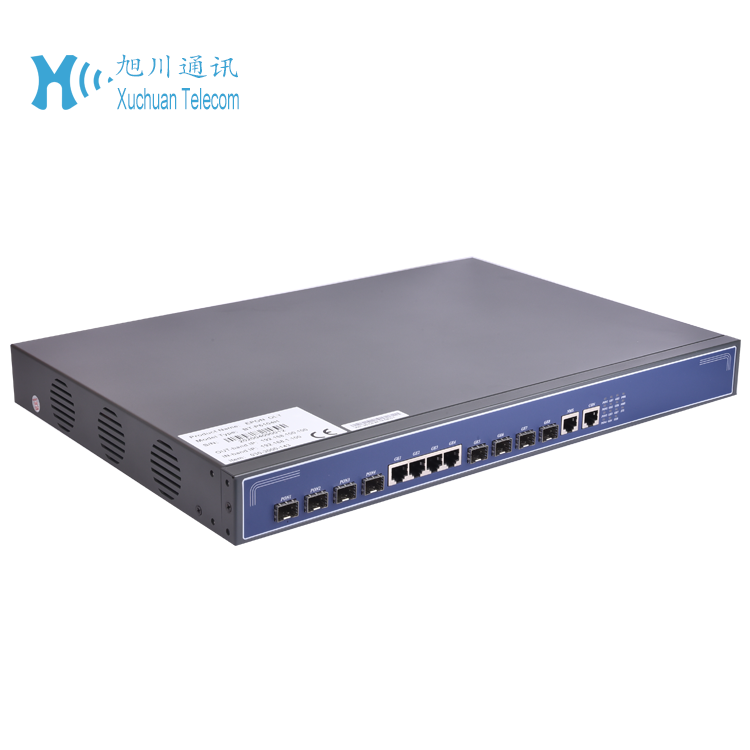

XCH-EP04H EPON OLT product is a 1U chassis device with L3 function developed by UN Solution. It complies with IEEE802.3ah standard and China CTC 2.1/3.0 standard, compatible with mainstream brand ONU access, easy to build EPON network flexibly and efficiently. It is smart, easy to deploy, and high performance, meeting the performance and volume requirements of users in different environments, and It also supports rich operation and maintenance tools such as EMS, WEB, Telnet, SSH and mobile APP, provides users with stable, efficient and value-added network access services.
The product is suitable for "Triple-Play", CPN, IP Camera, Enterprise LAN and IOT applications.

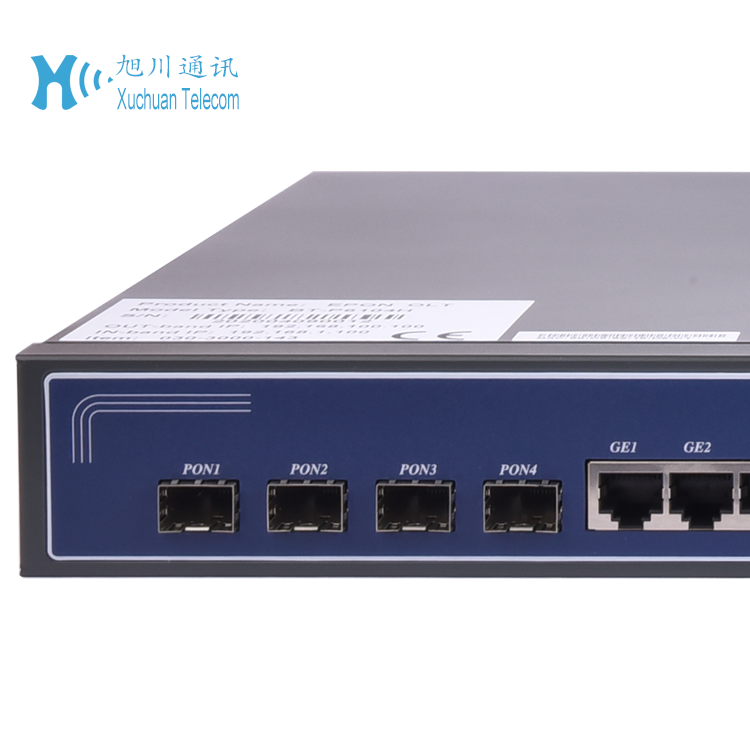

XCH-EP04H EPON OLT provides 4*EPON Port, 4*GE(RJ45) Port and 4*10GE(SFP+) Port. It can support 256 ONU under 1:64 splitter ratio.
Satisfactory standard
Meet IEEE802.3ah standards and China's CTC3.0 standards
Meet China's relevant EPON standards
Support IPv6 Function
Support DN, IPv6 Ping, IPv6 Telnet
Support ACL based on source IPv6 address, destination IPv6
address, L4 port, protocol type, etc.
Support MLD v1/v2 snooping
IP route
Support static route, dynamic route RIP v1/v2、OSPF v2(optional)
Easy to manage
Friendly EMS/Web/Telnet/CLI/SSH management
CLI command style similar to mainstream manufacturers
Support APP management
Fully open platform
Open to any brand of ONU
High performance cost
1U height compact design
Adopt mainstream chip scheme
