Product Specification

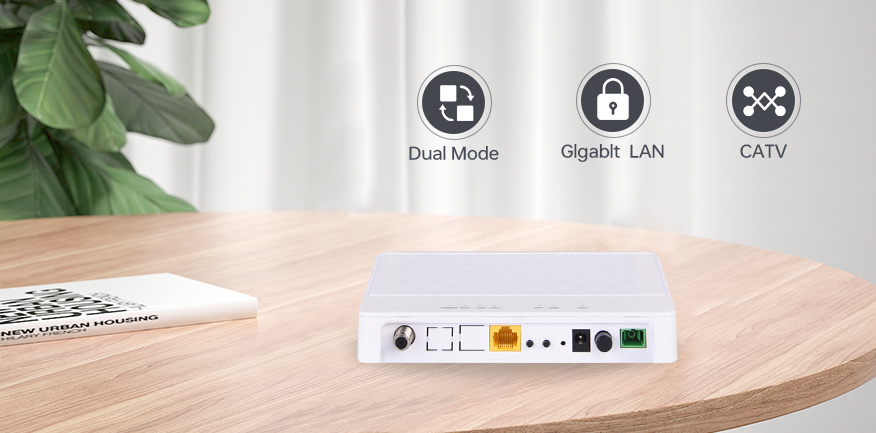

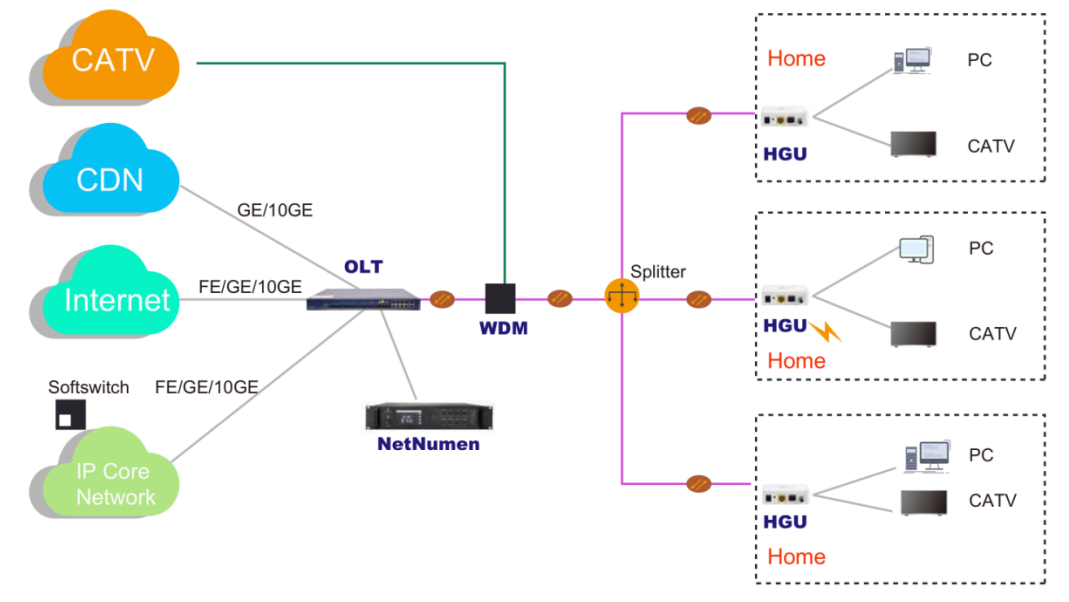

XCH-110XR model ONU is a user terminal device independently developed by XCH TELECOM in line with such industrial background. The device has built-in two-layer switching function. It is compact and compact, and is an FTTH optical network unit with high performance and low power consumption. XCH-110XR ONU can automatically switch EPON/GPON working mode and can be used in EPON/GPON network, which is very suitable for the application
requirements of various data services in FTTH networking scenarios of various operators.
Features:
GPON working mode Compliance with IEEE 802.3ah & itu-t g.984.x standard
GPON: 8 T-CONTs,32 GEM Ports
EPON working mode compliant with IEEE 802.3ah
specification and OAM protocol
Supports the WEB configuration function
Layer 2 Switching, support 802.1Q VLAN, 802.1P
QOS, Bandwidth Control, Spanning Tree, etc
Layer 3 Home CPE features with Hardware
NAT, supports Route mode, etc
Supports the configuration of Ethernet interface
rates, working modes,MDI/ MDIX auto-negotiation
mode, and Pause flow control
Provides performance statistics on all Ethernet lines
Support multicast IGMP snooping
Supports the L2 wire speed forwarding
Supports the AES-128 algorithm for data encryption
of downlink data
Support CATV interface for Video Service
Highlights:
Compatible with 95% Third-party OLTs (Including
Huawei/ZTE/Fiberhome/BT-PON and so on)
Spport EPON/GPON mode and switch mode
automatically
Support Route PPPoE/DHCP/Static IP and Bridge
mode
Support ONU auto-discovery/Link detection/re-
mote upgrade of software
Support IPv4/IPv6 dual mode
Support Firewall function and IGMP multicast
feature
Support LAN IP and DHCP Server configuration
Support Port Forwarding and Loop-Detect

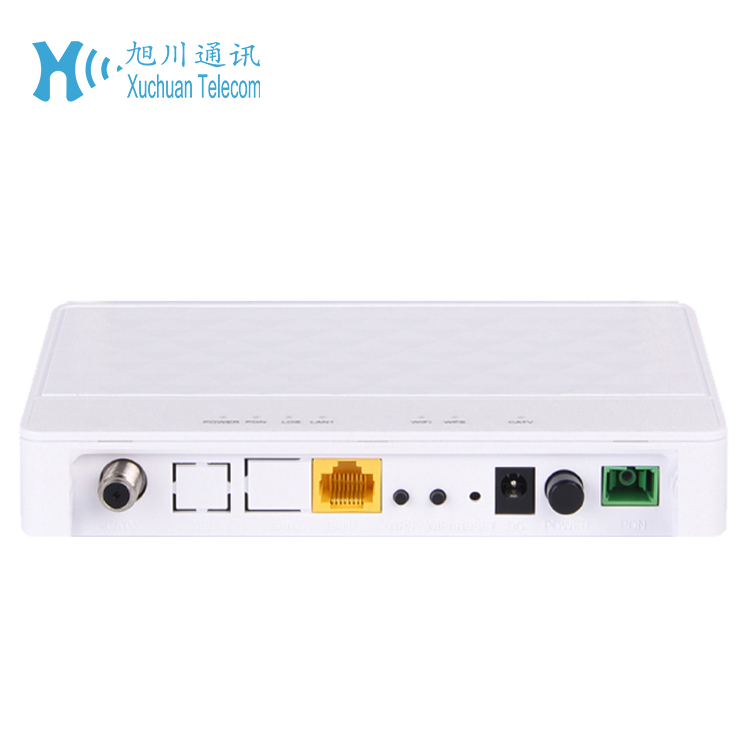

Hardware Specifications:
Size: 90*90*24mm
Weight: 95g
Power adapter input: 100V～240V AC,
50Hz～60Hz
PowerSupply requirement: 12V DC, 0.5A
Power consumption: <6w
Working temperature: -10°C ~ +45°C
Environment humidity: 5% ~ 95% (Non-con-
densing)
Ethernet Interface:
Interface type: 1* RJ45
Interface parameters: 1*10/100/1000Mbps
Ethernet Interface
PON Interface
Module type: Class B+ SC/APC
Working wavelength: up 1310nm，down 1490nm; CATV：1550nm
TX Optical power value: 0.5～4dbm
RX Optical power sensitivity: -28dBm
Transmission distance: 0～20km

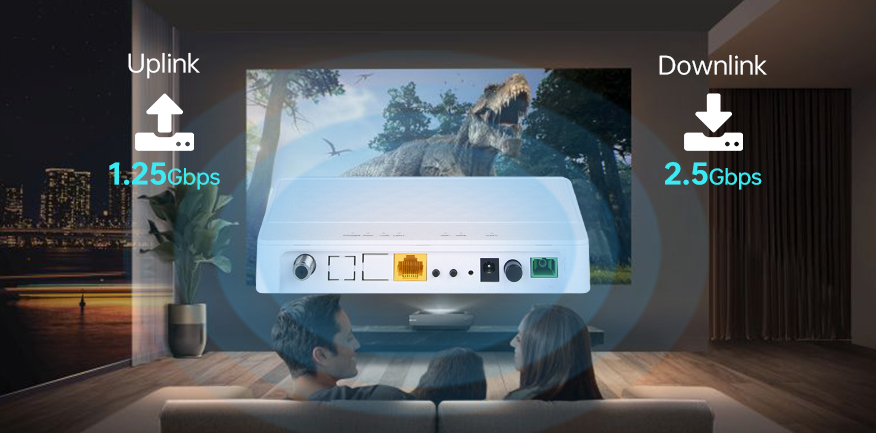

Transmission rate:
GPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps
CATV Interface
Optical receiving wavelength: 1550±10nm
Optical reflection loss: ≥45dBm
RF, WDM, optical power: +2~-15dBm
RF frequency range: 47~1000MHz, RF output
impedance: 75Ω
RF: output level 78dBuV
AGC range: 0~-12dBm
MER: ≥32dB@-15dBm
Product Packing Size:
80pcs/Carton
measurement: 52*43*35cm,18.5kg
Package included: Packing list:
ONU * 1 PC
Power adaptor *1 PC
Manual *1 PC
Box *1 PC
